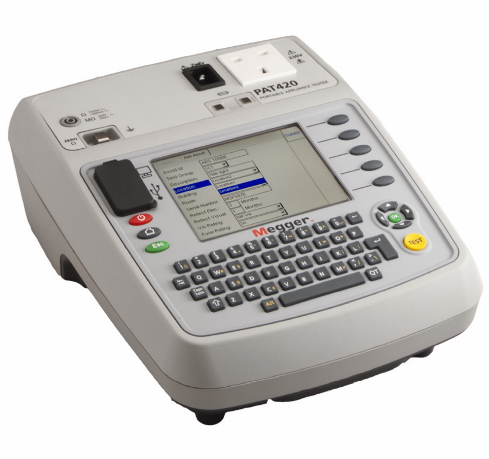

PAT420
Portable appliance tester
- 10,000 memory storage with USB download
-

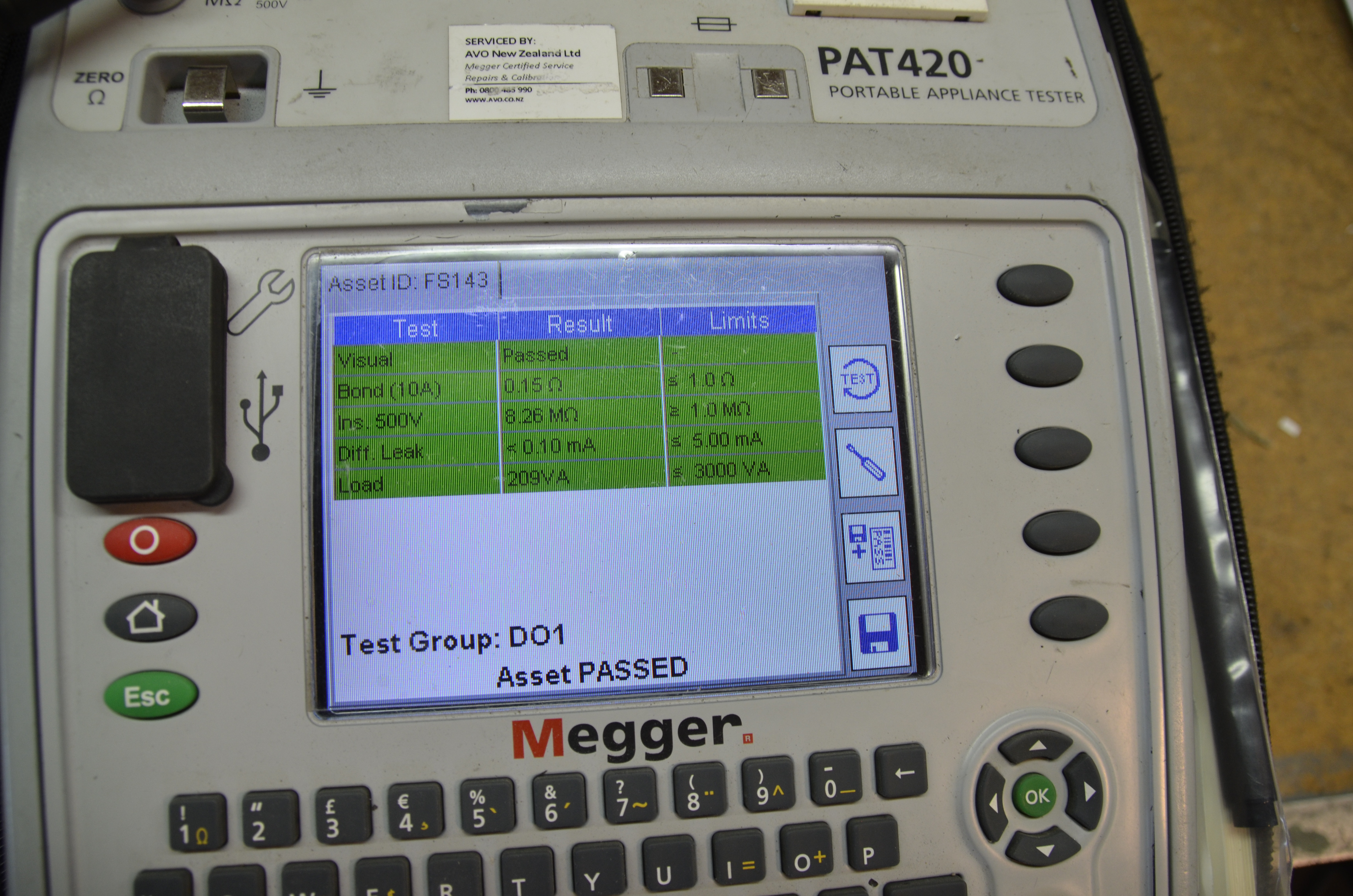

Large 5.7” ¼ VGA backlit full colour screen
for clear results -
200 mA; 10 A and 25 A Bond Test with high
duty cycle for repetitive testing -
Selectable PASS/FAIL limits provide instant
indication of a faulty asset -
Optional barcode scanner and printer
available to save time typing asset IDs -
230 V operation for industrial,
commercial and residential applications
DESCRIPTION
The PAT420 from Megger is a new generation of
downloading portable appliance testers, fully testing portable
electrical equipment to the latest edition of the Code of
Practice for the In-Service Inspection and Testing of Electrical
Equipment. The PAT420 provides the same extensive memory and
downloading capability and also 10 A and 25 A earth bond testing.
USB communication provides convenient download to a standard USB memory stick., and an on-board 10,000 record memory provides interruption-free testing for improved efficiency, with a large QWERTY keypad for fast data entry. Data is directly compatible with Megger PowerSuite® software for professional certification, and all products have the option of a barcode scanner and a thermal transfer barcode label printer operating directly from the USB port. Thermal transfer labels are highly resistant, stable and easily available.
5 soft-keys give direct access to frequently used functions, accelerating navigation through menus and therefore increasing productivity, where time is money. Both standard and customer configurable test groups are available for fast, flexible asset testing.
Tests available in the range include 250 V and 500 V insulation tests, 200 mA, 10 A and 25 A earth bond tests, differential, touch and alternative (substitute) leakage tests, operational VA tests, RCD trip-tests for portable RCDs, anti-surge and RCD protected extension leads and power cords. RCD testing is now a requirement of the UK Code of Practice.
Accessories supplied with all models include a combined
earth-bond and insulation test lead, an adaptor for testing
230 V extension leads, a laptop power supply adaptor, and
a carry-case for convenient product and lead storage. All
instruments also include Download Manager software, to
enable data to be converted into a CSV format which can be
read directly on a PC using Microsoft® Excel.
Megger PowerSuite software can be purchased to compliment any PAT400, providing full databased asset management and professional electronic certificate generation, providing options for multiple clients and locations.
The PAT420 is suitable for performing portable appliance testing in locations such as hotels, public houses, schools, colleges, nurseries, shops, offices, theatres, banks, restaurants, cafés, sports and leisure facilities, cinemas, factories and hair salons etc. where high volume testing requires that accurate records may be difficult to maintain, or aided by, on-board memory and download to management software.
Megger PowerSuite software can be purchased to compliment any PAT400, providing full databased asset management and professional electronic certificate generation, providing options for multiple clients and locations.
APPLICATIONS
There is a legal requirement for any landlord, employer or
owner of a place of work or public place, to ensure that all
electrical equipment accessible by tenants, employees or the
public is maintained in a safe condition, and an acceptable
method of ensuring this is by routine electrical testing. This
can be performed by electrical contractors, specialist PAT
testing organisations, maintenance departments, or facilities
management companies.
The PAT420 is suitable for performing portable appliance testing in locations such as hotels, public houses, schools, colleges, nurseries, shops, offices, theatres, banks, restaurants, cafés, sports and leisure facilities, cinemas, factories and hair salons etc. where high volume testing requires that accurate records may be difficult to maintain, or aided by, on-board memory and download to management software.
PAT420 | |
SUPPLY | |
230 V | |
Suppy measurement | |
EARTH BOND/CONTINUITY | |
200 mA | |
10 A | |
25 A | |
Bond lead null | |
ALTERNATIVE LEAKAGE TESTS | |
Subtitute | |
Differential | |
Touch current | |
OPERATION TEST | |
VA Measurement | |
EXTENSION LEAD TESTS | |
Earth bond | |
Insulation | |
Polarity | |
Portable RCD tests | |
FLASH TEST | |
1.5 kV and 3 kV | |
OTHER FEATURES | |
Low-profile light weight | |
Auto test routine | |
Manual testing | |
Fuse check | |
Colour display | |
Configurable tests times | |
Selectable pass limits | |
Lead storage pouch | |
10,000 record on-board storage | |
Download to USB memory stick | |
PowerSuite compatible |
SPECIFICATIONS
Electrical supply range | |
PAT420 | 230 V ± 10% @ 50/60 Hz |
±10% @ 50/60 HZ | |
Bond test (10 A and 25 A) | |
Open circuit voltage: | 9 V a.c. ± 10% ± 0.1 V |
(Supply: 230 V 50Hz) | |
Earth bond resistance accuracy: | |
±5% ±3 digits (0 to 0.49 Ω) | |
±5% ±5 digits 0.5 to .99 Ω) | |
Earth bond resistance resolution: | 10 mΩ (0 to 1.99 Ω) |
Display range: | 0 to 1.99 Ω |
Continuity test (200 mA) | |
Continuity test voltage: | 4.0 V d.c. -0% +10% |
Continuity resistance accuracy: | ±5% ±3 digits (0 to 0.49 Ω) |
±5% ±5 digits 0.5 to .99 Ω) | |
Continuity resistance resolution: | 10 mΩ (1 to 19.99 Ω) |
Display range: | 0 to 19.99 Ω |
Insulation test (250 V and 500 V) | |
Insulation resistance accuracy (230 V): | ±2% ±5 digits (0 to 19.99 MΩ) |
±5% ±10 digits (20 to 99.99 MΩ) | |
Insulation resistance resolution: | 0.01 MΩ |
Display range: | 0 to 99.99 MΩ |
Substitute leakage test | |
Test voltage and frequency: | 40 V a.c. ±10% nominal mains frequency |
Leakage current accuracy: | ±5% ±5 digits |
Leakage current resolution: | 0.01 mA |
Display range: | 0 to 19.99 mA |
Differential leakage current | |
Test voltage and frequency: | Nominal mains supply |
Differential leakage current accuracy: | ±5% ±5 digits |
Differential leakage current resolution: | 0.01 mA |
Display range: | 0 to 19.99 mA |
Touch current test | |
Test voltage and frequency: | Nominal mains supply |
Touch current accuracy: | ±5% ±5 digits |
Touch current resolution: | 0.01 mA |
Display: | 0 to 10 mA |
Operational test | |
Test voltage and frequency: | Nominal mains supply |
VA rating: | 230 V 3700 VA |
VA accuracy: | ±5% ±10 digits (0 - 99 VA) |
±5% ±50 digits (100 VA - 999 VA) | |
±5% ±100 digits (1000 VA - 3700 VA) | |
Resolution: | 1 VA (0 to 3700 VA) |
Display range: | 0 to 3990 VA |
Extension lead test | |
Tests performed: | Bond, insulation and polarity |
Polarity test voltage: | 12 V |
Polarity checks: | Lead OK |
Live neutral S/C | |
Live neutral reversed | |
Live/neutral O/C |
